3mm LED Advertising Billboards RGB 3 In 1 LED Advertising Screen For Media Player

Brand Name : SRYLED

Model Number : SRY-IF-P3

Certification : CE/RoHS

Place of Origin : China

MOQ : 1sqm

Price : 1100-1500USD/sqm

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 3000sqm per month

Delivery Time : 7-15 days

Packaging Details : Wooden box or flight case

Pixel Pitch : 3mm

Module Size : 192mm x 192mm

Confirguration : RGB 3 in 1

Led Chip : SMD2121

Drive Method : 1/16 scan or 1/32 scan

Brightness : 1200cd/sqm

Display Source : Video, Image, Message, Sheet

Control Way : Wifi, 3G or Synchronous

Contact Now

3mm LED Advertising Billboards RGB 3 In 1 LED Advertising Screen For Media Player

Description

1, Beautiful outside design, it looks like LCD Midea Player.

2, Multiple formarts. It can supports text, graphic, picture, animation and video.

3, Control Way, 3G/ WIFI/ Sychronous are available.

4, Live broadcast. It can support DVI,HDMI, 3G/HD/SC with SDI high definition display mode.

Features


1, Excellent flatness, neighbouing module gap less than 0.1mm.

2, High contrast, 4000:1.

3, Easy installation, with fast locks, power and data plugs.

4, Lacquer coating, protect PCB and relevent components.

5, High resolution, 111111dots/sqm.

6, Short viewing distance, can be seen at 1- 2 meters short distance.

Competitive Advantages


1, First-class LED chip and IC

2, Clear vivid image quality

3, Long life time of more than 100,000 hrs

4, Short delivery time

5, 24/7 hrs after sale service

6, 2 years warranty

Application

Gas Stations, Movie Theaters, KTVs, Clubs, Hospitals, Airport etc.

Specification

Pixel Pitch

3mm

Pixel Density

111111dots/sqm

Color Configuration

1R1G1B

LED Package

SMD2121

Module Size

192mm x 192mm/192mm x 96mm

Module Resolution

64dots x 64dots/64dots x 32dots

Drive Mode

1/16 Scan

Standard Cabinet Size

576mm x 576mm

Cabinet Weight

10KG

Brightness

≥1200 cd/sqm

Viewing Distance

3m-30m

Viewing Angle

H: 140°; V:120°

Refresh Rate

2000HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10%, 50HZ

Max Power Consumption

1000W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-30℃~+70℃

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Control PC

With DVI Graphic card

Operating System

Win 98, Win2000, XP, Win7, Win8

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

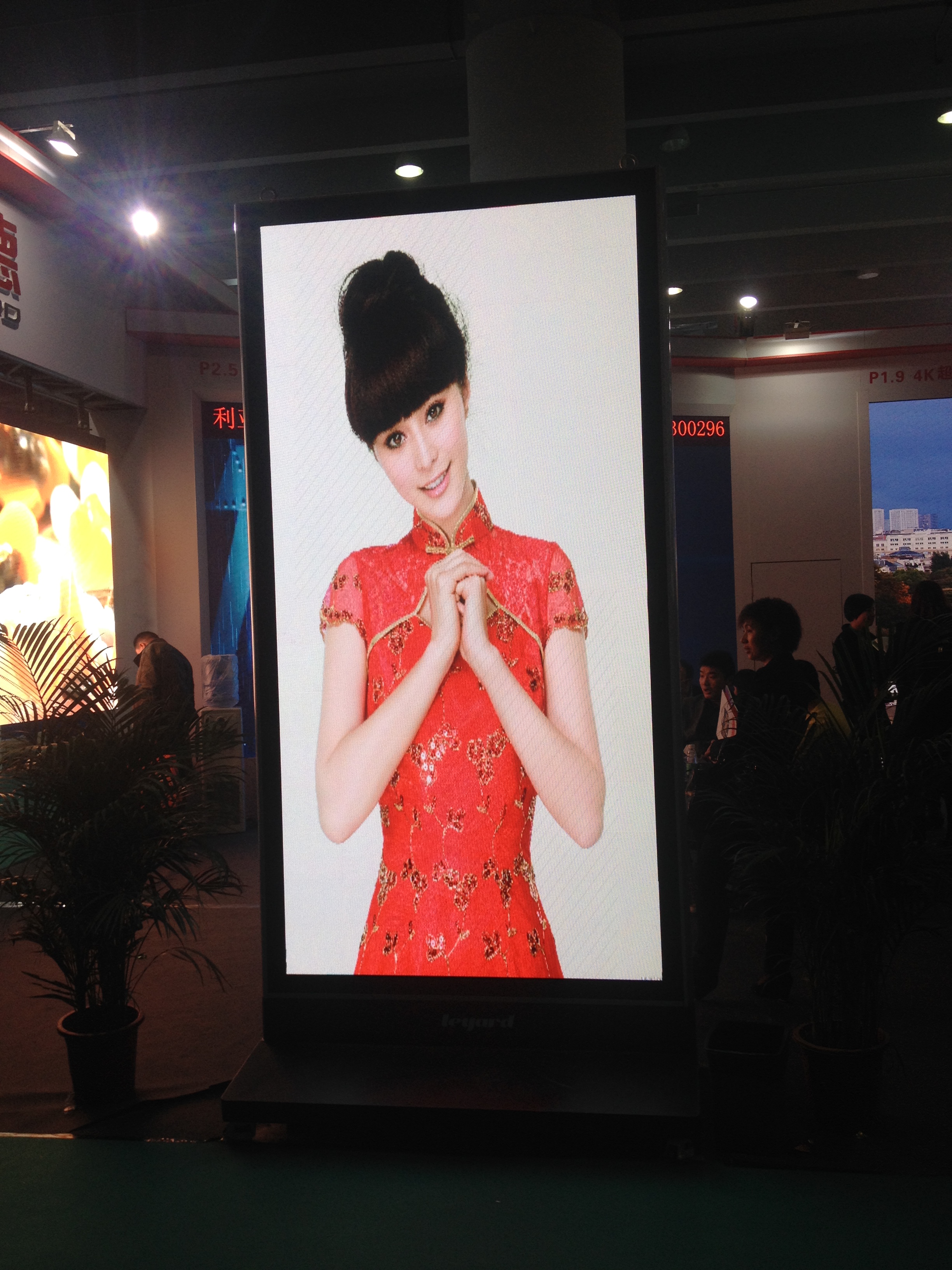

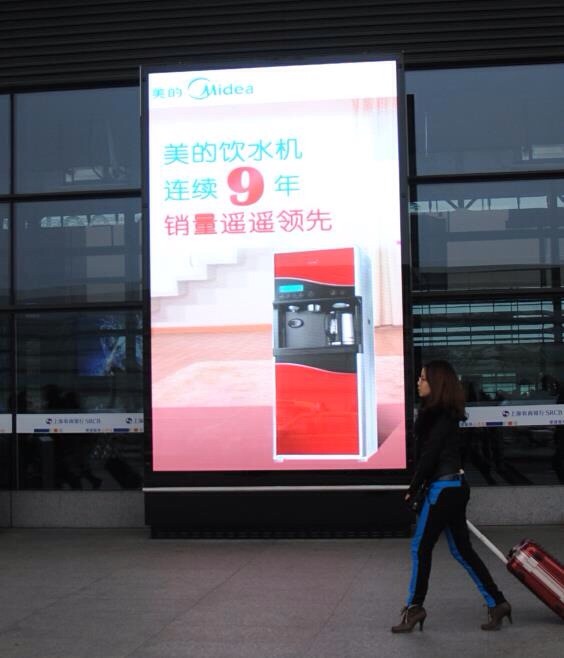

Product Images

3mm LED Advertising Billboards RGB 3 In 1 LED Advertising Screen For Media Player

3mm LED Advertising Billboards RGB 3 In 1 LED Advertising Screen For Media Player
